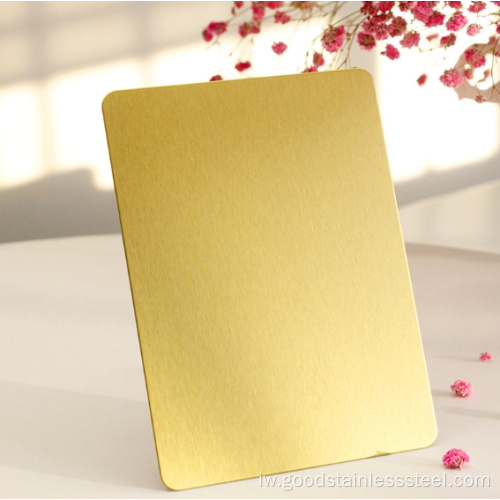

גיליון סאטן נירוסטה

Thinckness

0.3mm-60mm

Widthness

50mm~2000mm or customized

Length

1000mm~8000mm or customized

Standard

JIS, AISI, ASTM, GB, DIN, EN

Material

201/201/304/304L/316/316L/321/309S/310S/904L stainless steel plate sheet

Surface

2B,BA,HL,BK,NO.1,NO.4,8K,SB,etc

Certificate

BV,ISO ,CE ,SGS,ROHS, IBR

Application

Bridge, vessel,roofing,car, building etc

Carbon

0.25 max

0.08 max

Manganese

2.00 max

2.00 max

Silicon

1.50 max

1.50 max

Phosphorus

0.045 max

0.045 max

Sulphur

0.030 max

0.030 max

Chromium

24.00 - 26.00

24.00 - 26.00

Nickel

19.00 - 22.00

19.00 - 22.00

Grade 0.2 % Proof Stress MPa (min)

205

Tensile Strength MPa (min)

520

Elongation % (min)

40

Hardness (HV) (max)

225

Density

8,000

Kg/m3

Electrical Conductivity

25°C

1.25

%IACS

Electrical Resistivity

25°C

0.78

Micro ohm.m

Modulus of Elasticity

20°C

200

GPa

Shear Modulus

20°C

77

GPa

Poisson's Ratio

20°C

0.30

Melting Rnage

1400-1450

°C

Specific Heat

500

J/kg.°C

Relative Magnetic Permeability

1.02

Thermal Conductivity

100°C

14.2

W/m.°C

Coefficient of Expansion

0-100°C

15.9

/°C

0-315°C

16.2

/°C

0-540°C

17.0

/°C
